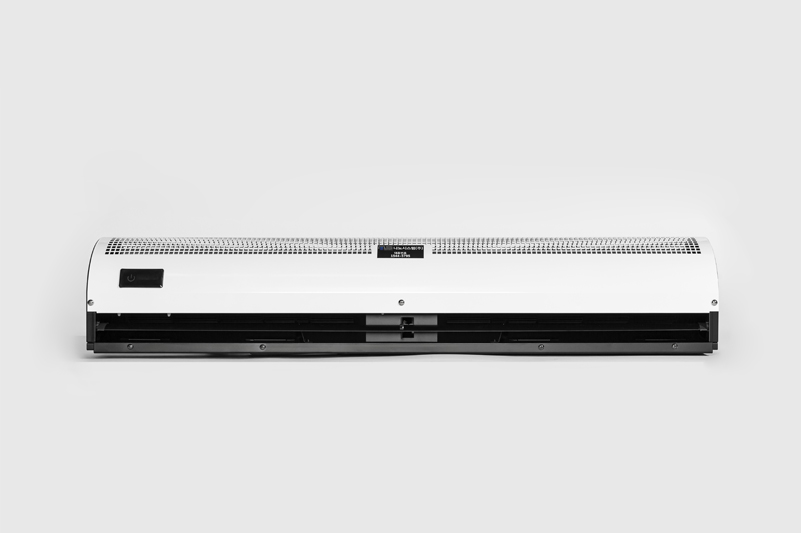

Standard Air Curtain

The cleanest and best product with its slim, sophisticated design and oval shape.

NANO SYSTEM

Experience Nano System's unique airflow in shared spaces, designed for everyone

Product Features
  • Cost -Effectiveness
    A cost-effective product that maximizes air curtain efficiency while remaining affordable.
  • Low Noise
    Fan structure design changes and reduced specifications have lowered noise while increasing air volume.
  • Convenient Operation
    Convenient use through a remote-control system and a limit sensor.
  • Product Light weighting
    Enhanced stability and installation convenience through ultra-lightweighting to reduce weight.
  • Energy Saving
    Maximizes heating and cooling efficiency during air curtain operation with low power consumption.
  • Waterproof Molded PCB Board
    Special waterproof treatment of the PCB circuit board allows safe use in high-humidity environments.
Product Specifications
swipeDrag left and right possible
Model Power
(V/Hz)

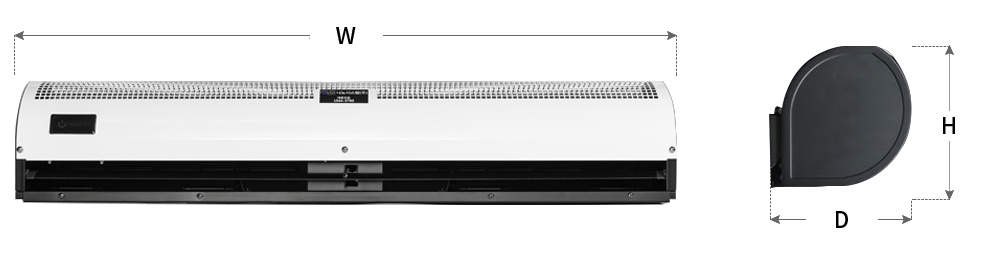

Dimensions
(W x H x D)
Power Consumption(W)
Wind Speed-High
Wind Speed (m/s)
High/Medium/Low
Noise(db) Air Volume (CMM) Effective Blocking Height(M) Weight(kg)
NS-1209CR 220V / 60Hz 900*186*186 100W 10 ~ 12 45~55 25 2~2.5 6.3
NS-1210CR 1000*186*186 120W 7
NS-1212CR 1200*186*186 140W 31 7.5
NS-1215CR 1500*186*186 180W 39 8.5
