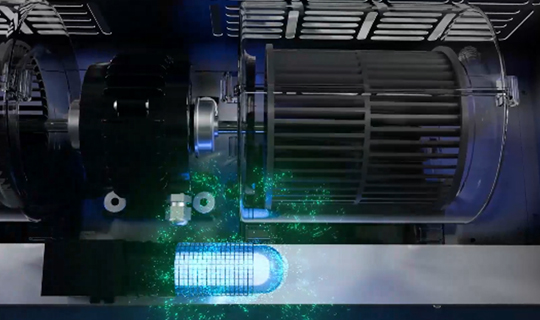

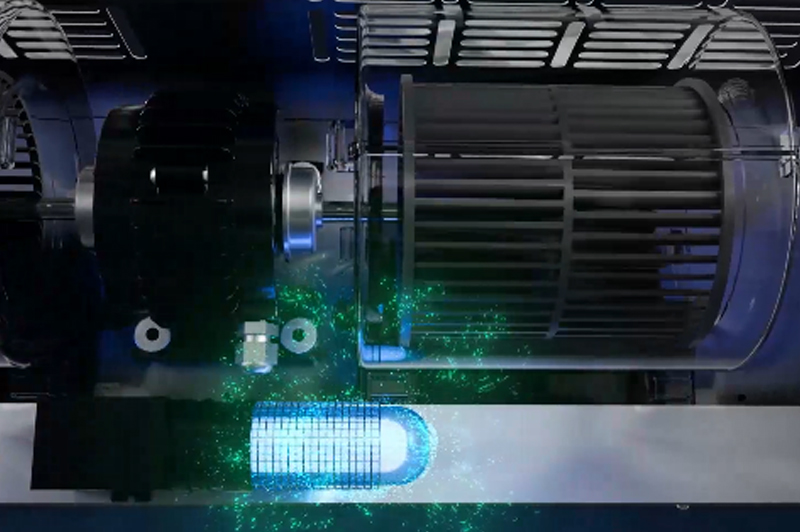

Plasma Ion Cluster Generator

Product Built-in Module Series
  • Design with all circuits contained within a small tube
  • Easy installation due to compact size
  • Applicable to various products (diffusers, air conditioners, fans, refrigerators, etc.)
  • Effective deodorization when used as an air sterilizer
  • Extremely low power consumption, making it ideal for product integration
Application Locations
  • Hospitals (operating rooms, newborn rooms, emergency rooms) / Public smoking rooms / Veterinary hospitals / Childcare centers / Offices / Stores / Fitness centers / Hotel lobbies, etc.
  • Compatible with all NANO SYSTEM products
Ion Cluster Generation Principle
High voltage application
Simultaneous emission of
positive and negative ions
Combination with water molecules in the air
→ Formation of ion clusters
Deodorization Principle
Odors and chemicals in the air
Odor molecules surrounded
by ion clusters
Decomposition into harmless substances through chemical reactions
Sterilization Principle
Airborne bacteria
Bacteria surrounded by ion clusters
Decomposition into harmless substances through chemical reactions
swipe좌, 우 드래그가능
Filter type air purifier Ion cluster method
☆☆★★ smell ★★★☆
☆☆★★ HCHO ★★★★
☆☆★★ TVOC ★★★★
☆☆★★ virus ★★★★
☆☆★★ Fungi ★★★★
☆★★★ Fungus ★★★★
☆☆★★ Dust ★★★★
Product Features
  • What is an ion cluster?
    Ion cluster is an aggregate of 10~60units that ionized oxygen molecules in the air. In nature, after a lightning strike, many ion clusters are created in the air, which removes odor molecules, microorganisms, germs and fungus in the air and purifies the air. H-ION CLUSTER reproduces this principle with plasma technology and creates Ion cluster to create pleasant indoor air. Plasma ion cluster sterilization method provides the fundamental sterilization and deodorization power, as it destroys cell activating substance by ion energy bond with gaseous pollutant.
  • Deodorizing Effect
    Helps you live in a consistently pleasant environment by eliminating unpleasant odor sources such as cigarette smoke and ammonia that can degrade indoor air quality.
  • Harmful Substance Removal Effect
    Removes VOCs and harmful substances such as formaldehyde and toluene that cause sick building syndrome.
  • Sterilization Effect
    Creates a hygienic and healthy environment by effectively removing various invisible bacteria and pathogens floating in the air that threaten health.
  • Food Freshness Maintenance Effect
    Provides an environment where food can be kept fresh longer by removing mold that easily spoils food.
Product Advantages
  • Air purifying effect
    to remove various pollutants such as fine dust, yellow dust, etc.
  • Sanitizing effect
    to remove odor and viruses of causative bacteria and various diseases
  • Public health effects
    that prevent hygienic enviroment and prevent group food poisoning
Domestic and International Test Certification Results
Ion Clust e r Mold Removal Experiment
swipe좌, 우 드래그가능
Contaminant source Removal rate(%) Testing institution
Bacteria & Virus S. Aureus Bacteria 99 KTR, SCLAB
Influenza A Virus (H1N1) 95 Kitasato (Japan)
MSRA Super Bacteria 99 KCL
Salmonella 99 KCL
E. Coli Bacteria Bacteria 99 KTR, SCLAB
Bacteria 99 Enviro Screening Lab (USA)
Fungi 99 Intertek (France)
Chemical & VOCs VOC 98 Samsung Electronics
Formaldehyde 98 KCL
Ammonia 93 Inha University, KTR
Toluene 92 Inha University, KTR
H2S 98 KTR
Acetone 98 KCL
Ethylene 100 KCL
