Ultra Power-Saving

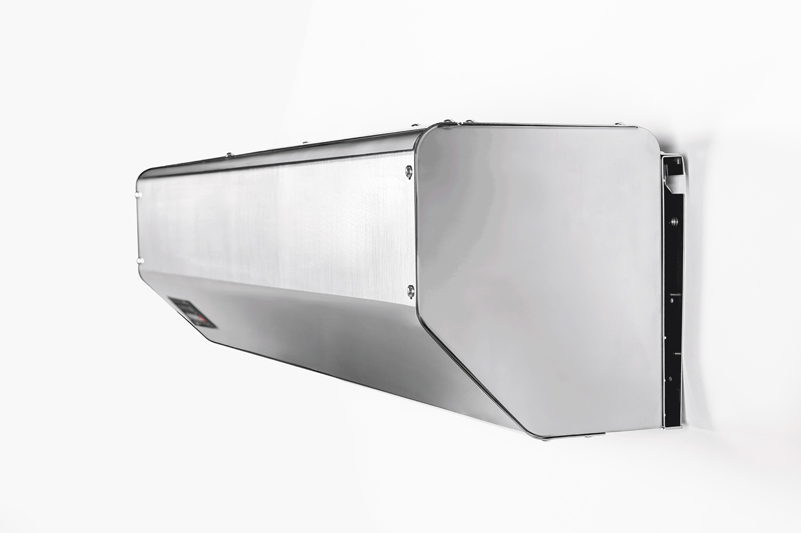

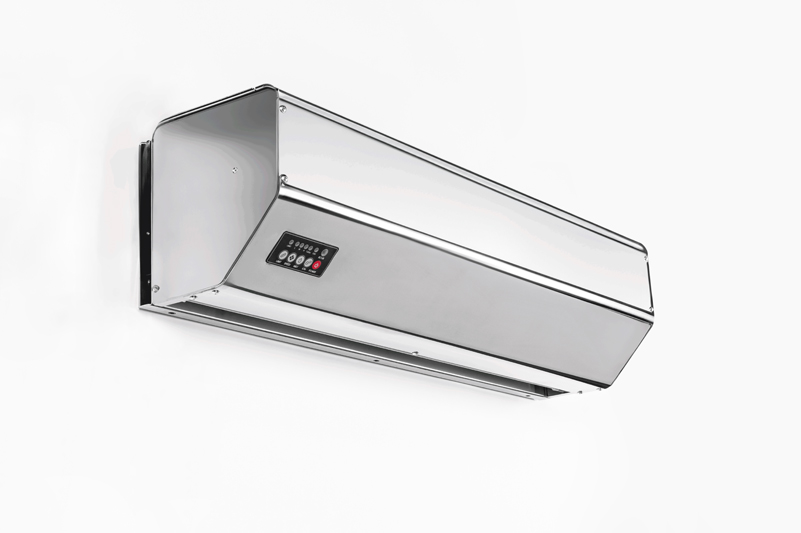

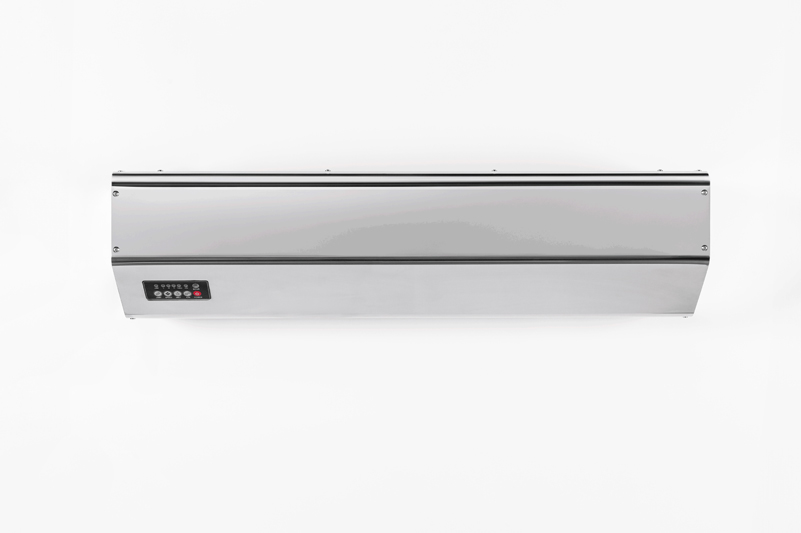

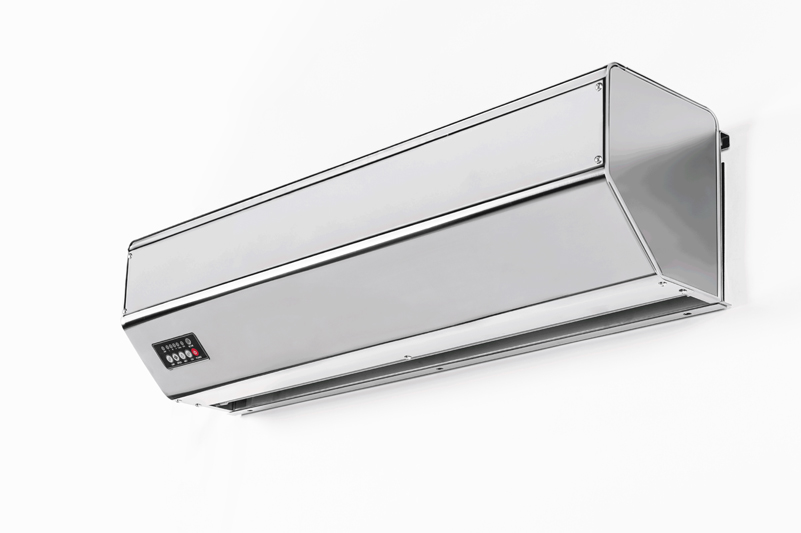

BLDC Model Stainless Steel Type Ultra Power-Saving

Reduces power consumption by 60~70% compared to air curtains sold in the market, providing excellent electricity savings. Compared to AC motors, raising the waterproof and dustproof rating to IP54 makes it suitable for locations with moisture and dust. The addition of turbo wind speed provides four different speeds (low, medium, high, turbo), allowing adequate blocking at heights from 2m to 4m.

Product Features
  • Ion Cluster Function (Optional)
    Mounted inside the air curtain, it generates ion molecules that sterilize viruses by encapsulating their proteins and provides a deodorizing effect by removing odors. (Ion operation is possible independently of the air curtain’s airflow)
    - Application locations: Daycare centers, kindergartens, hospitals, food waste treatment facilities, etc.
  • Limit Sensor
    A function that automatically turns the air curtain ON when a door opens and OFF when the door closes.
  • Remote Control
    Allows easy operation according to consumer convenience and needs with wind speed control, limit sensor, human detection sensor, ion function, etc.
  • Motion Sensor
    Works with the limit sensor and motion sensor to detect movement in advance, activating the air curtain. When the door opens, it switches to the limit sensor, and after the door closes, it continues operating for 2-3 seconds before turning OFF.
  • Turbo Feature
    Features a powerful essential wind speed of 21m/s, allowing installation not only in stores with high doors but also in high factory doors, with a maximum wind speed of up to 23m/s.
NANO SYSTEM

NANO SYSTEM’s Technology! Domestically and Internationally Unique BLDC Motor Air Curtain

Product Advantages
  • Power Consumption
    Reduces power consumption by 60~70% compared to air curtains sold domestically.
  • Enhanced Durability
    Improved waterproof and dustproof functionality through PCB molding treatment. Waterproofing, high-output waterproofing of motors, dustproofing, and fan structure modifications have increased wind speed and volume.
  • Various Functions
    Improved consumer convenience and effectiveness with added functions such as various wind speeds, limit sensor, motion sensor, ion cluster, error codes, etc.
  • Remote Control System
    Allows selection and use of various functions through remote control.
  • Premium Design
    Expanded consumer choices with premium designs and various colors.
  • ALL Dome st ically Produce d Part s
    Reduced component costs through premium design.
Product Specifications
swipeDrag left and right possible
Model Power Dimensions(W*H*D) Power Consumption (W) Wind Speed (m/s)
(Turbo/High/Medium/Low) 		Noise(dB) Air Volume (CMM) Effective Blocking Height (M) Weight(kg)
NS-900BDS 220V
60hz		 900*235*235 52~160W 21/17/15/12 43~61 28 2~4 12
NS-1000BDS 1000*235*235 52~160W 43~61 28 15
NS-1200BDS 1200*235*235 72~247W 55~69 37 17
NS-1500BDS 1500*235*235 91~343W 58~72 46 22
NS-1800BDS 1800*235*235 116~348W 65~75 60 24
NS-2000BDS 2000*235*235 116~383W 65~75 65 26

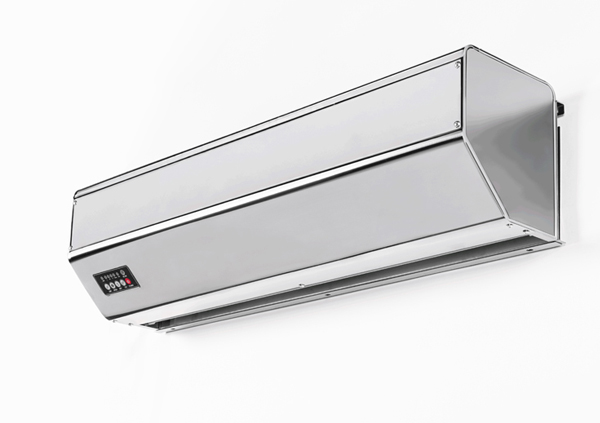

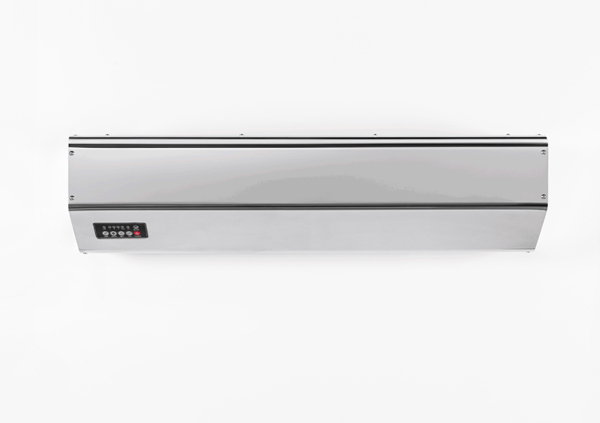

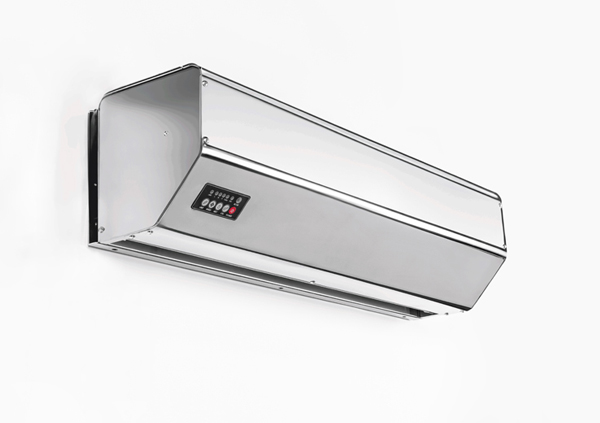

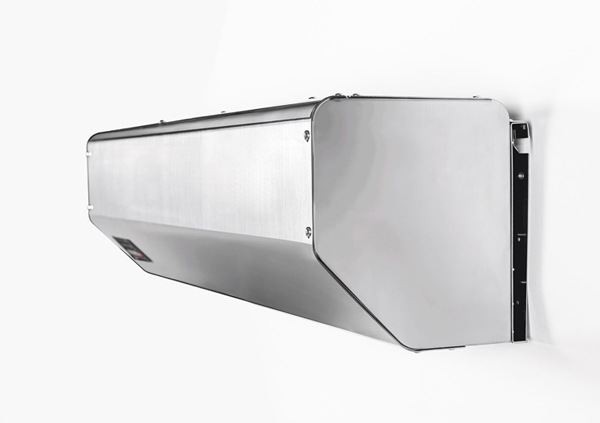

Product Colors

Stainless steel 304 material
Stainless steel 304 material
Stainless steel 304 material
Stainless steel 304 material
Electricity Cost and Power Consumption Comparison Table (Based on 2 Motors)
swipeDrag left and right possible
Product Company Wind Speed-High (m/s) Power Consumption-High(W) Daily 10-hour
Monthly Electricity Cost
S Company 16 463 10,000~12,000 won
H Company 16 470
A Company 20 352
NANO SYSTEM 17/20(Turbo) 125/160(Turbo) 4,000~5,000 won
