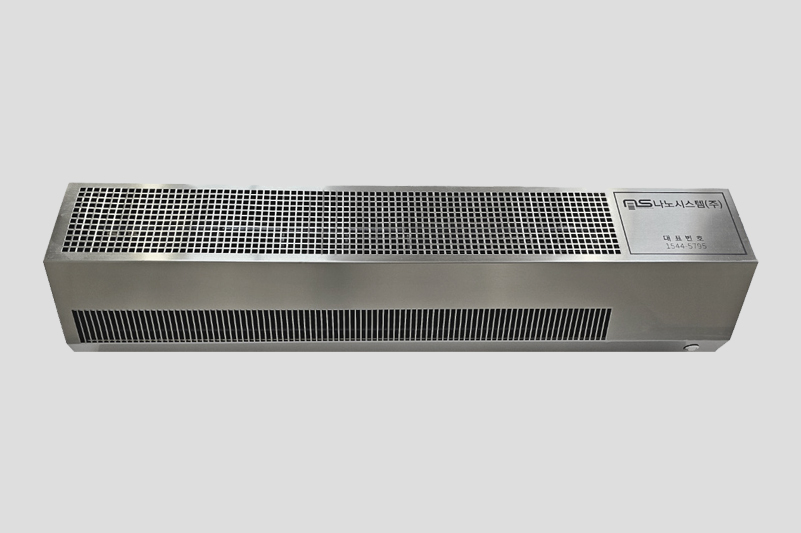

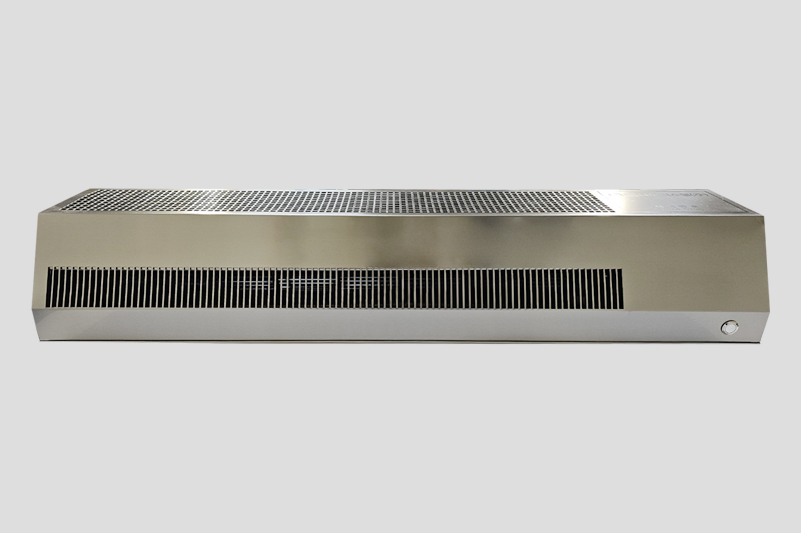

Bus Station/Elevator Air Curtain

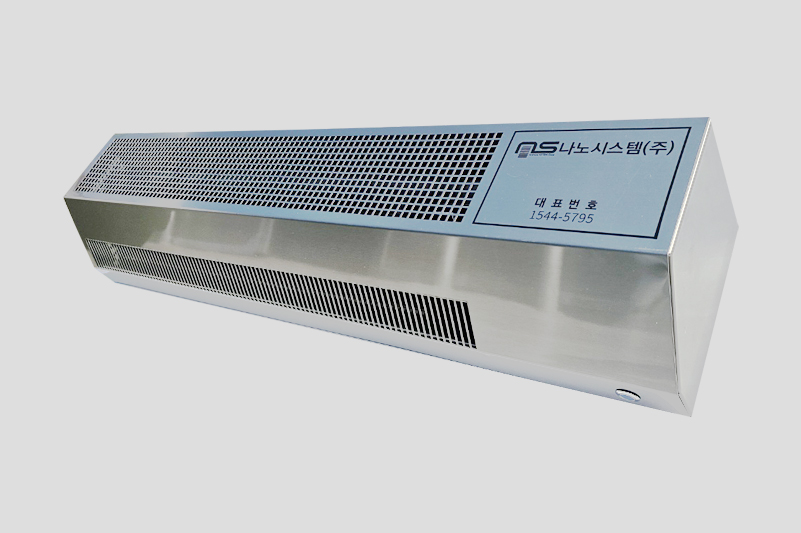

This product’s case is made of stainless steel, providing strength against rust and corrosion and a clean appearance, which is essential for station installations exposed to the elements.

Air-Curtain for Vehicles

Air curtains using DC motors

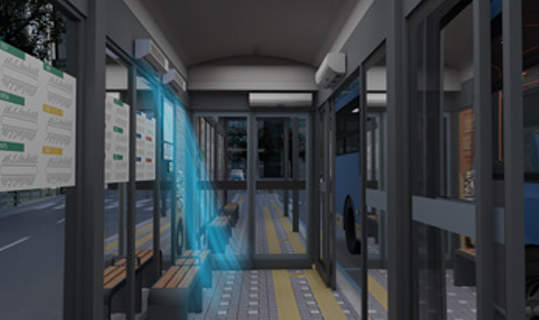

for installation in bus stops and elevators

Product Advantages
  • Low Powe r Con sumpt ion
    Uses a BLDC motor, custom-made for stations, saving 60~70% in power consumption compared to other companies’ products, providing excellent energy-saving efficiency.
  • Enhanced Dustproof and Waterproof Functions
    Considering the characteristics of station air curtains installed outdoors, the structure of the motor and PCB has been modified, and the PCB board inside the product is finished with waterproofing and epoxy treatment, enhancing dustproof and waterproof functions for safe operation even when exposed to dust, humidity, or rain.
Product Features
  • Various Functions

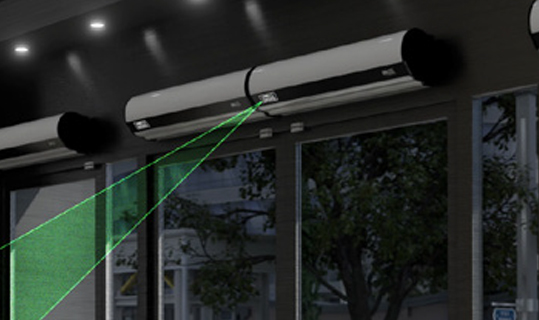

    Equipped with three wind speeds, a timer function, and a human detection sensor for convenient operation.
  • Convenient Installation
    The station air curtain has a built-in control function PCB, eliminating the need for additional processes and materials such as control panels, switches, and timers. No primary or secondary wiring work is required, resulting in clean aesthetics and quick, convenient installation.
  • Safety/Lightweight/Structure

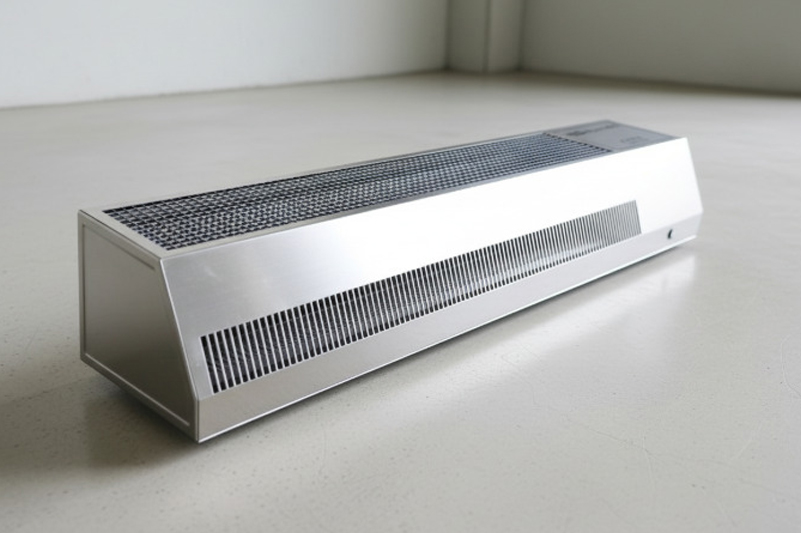

    The product’s lightweight and slim specifications facilitate installation, safety is ensured by preventing foreign objects and hands from entering the air outlet, and the 45-degree angle air discharge structure saves installation costs by eliminating unnecessary materials.
  • Easy Cleaning
    Made of stainless steel that does not rust when installed outdoors, it is easy to detach and attach and is simple to maintain.
Product Specifications
swipe좌, 우 드래그가능

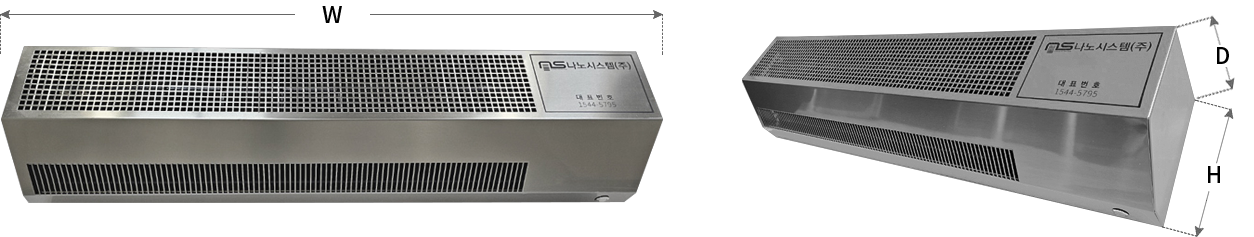

Model Size
(W*H*D)
Power
(V/Hz)
Power Consumption (W) Wind Speed (m/sec) Noise(db) Weight(kg)
NS-800BS 820*171*152 Single-phase, 220V, 60Hz 25W-65W 9~13 50 5

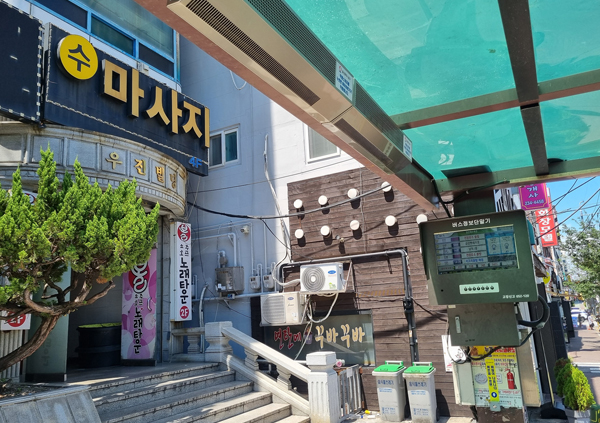

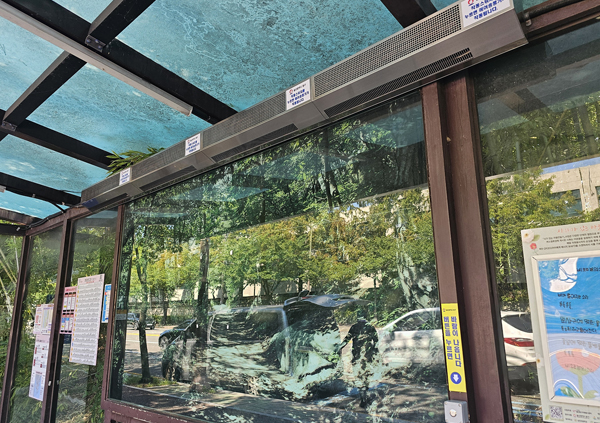

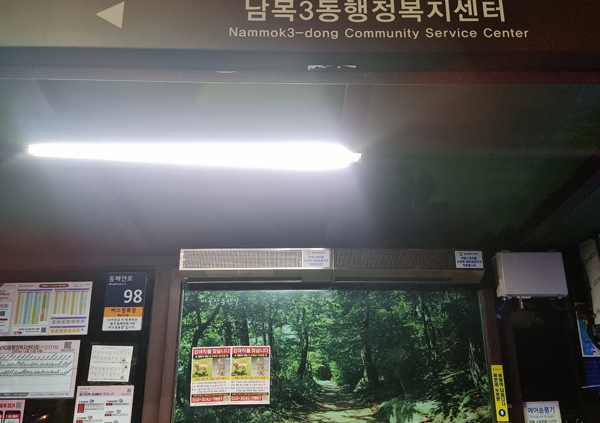

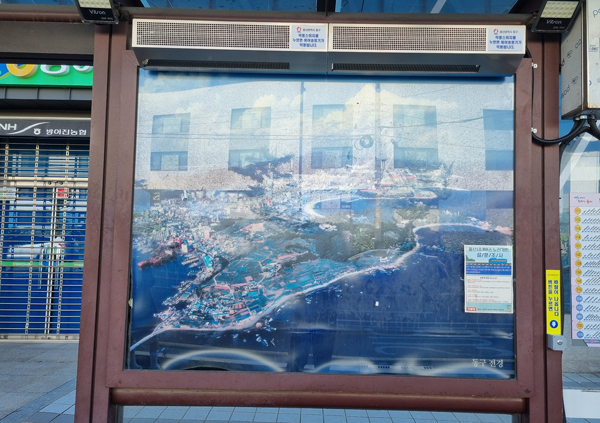

Example of installation
