Heater-Integrated

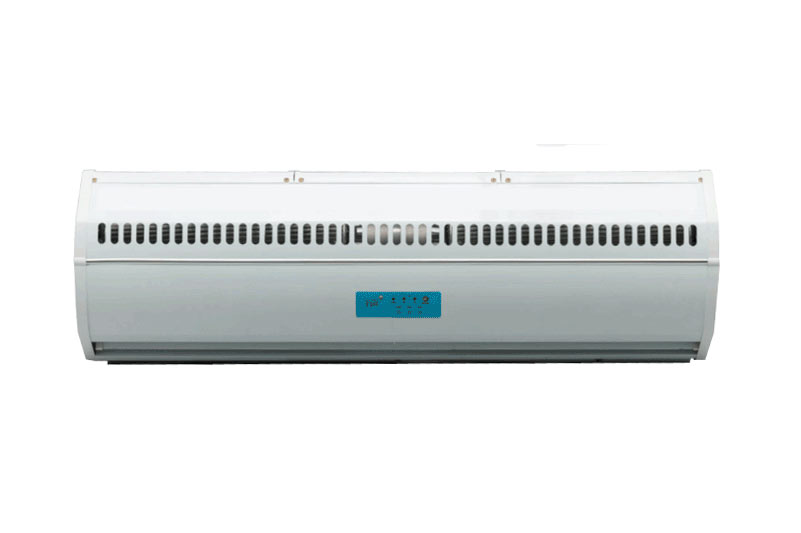

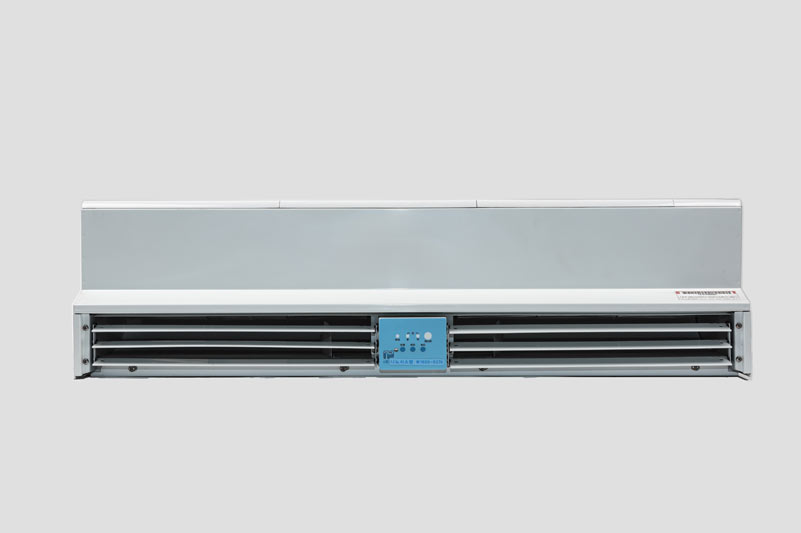

Heater-Integrated Air Curtain

An air curtain is designed to produce warm air in winter by incorporating high-heat heating rods into the blower-type air curtain.

Heater Type Air-Curtain

Air curtains equipped with proven high-efficiency heater elements for winter operation

Product Advantages
  • Premium Design
    A heater function was added to the premium air curtain design.
  • High-Efficiency Heater Rods
    Enhanced durability and efficiency with aluminum heater rods.
  • Low Noise Re alizat ion
    Using rod-type heaters reduces noise, a common drawback of conventional heaters.
  • Outstanding Corrosion Resistance
    Made with stainless steel that is strong against corrosion inside and outside, it is suitable for high humidity environments.
  • Simple Remote -Control System
    Remote control capability eliminates the need for unnecessary control panel installation.
  • Custom Control Panels
    Various control panels can be produced and installed when customers need them.
Product Features

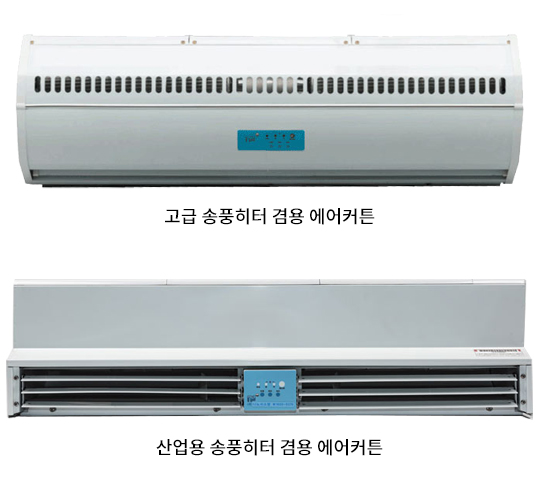

  • Heater-Integrated Air Curtain
    This heater-integrated air curtain breaks away from conventional bulky designs with a refined appearance and built-in high-efficiency heater elements, satisfying both quality and design requirements.

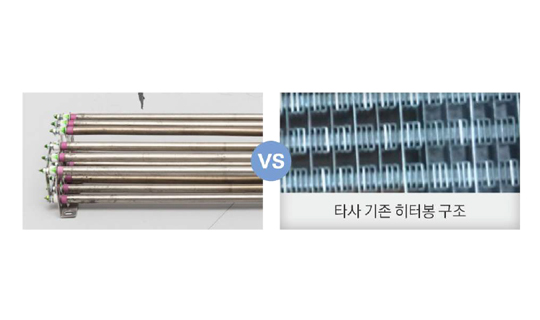

  • High-Efficiency Heater Rods
    Other companies’ heater rods use honeycomb structure heat sinks, which have weak durability and short lifespan due to dust, but NANO SYSTEM’s heater rods use 8Φ 12-row aluminum heater rods with heat coils wrapped around them, increasing durability and efficiency, and minimizing noise caused by air resistance.
  • Remote Control System
    Other companies’ heater-type products always require a control panel, incurring additional costs for panel production and secondary electrical work, but NANO SYSTEM’s remote-controlled air curtains can be controlled by remote control alone, where a control panel is not essential.

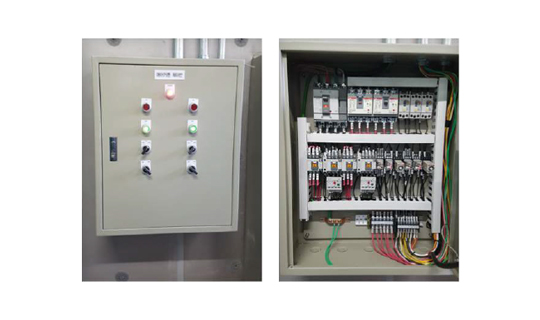

  • Various Control Panel Configurations
    When installing with a control panel, the exterior casing (ABS case, standard steel case, stainless steel case, double door structure) and internal configuration can be produced and installed in various forms according to customer needs.

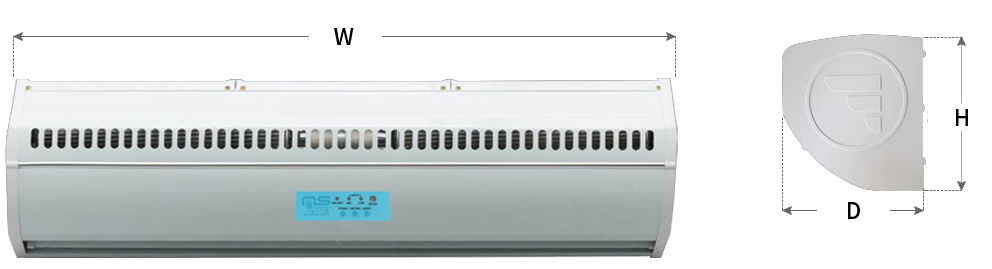

Product Specifications
swipeDrag left and right possible
Product Type Model Power Dimensions(mm) Power Consumption(KW)
Wind Speed-Hig		 Wind Speed (m/s)
High/Medium/Low		 Noise(dB)
Wind Speed High		 Air Volume (CMM)
Wind Speed High		 Effective Blocking Height (M) Weight(kg)
Premium Blower Heater Integrated (Panel Type) NA-3509H Motor 220V Heater 380V (R,S,T,N) 900×220×225 6.2 10(Single wind speed) 65 21 2.0 17
NA-3510H 1000×220×225 7.2 9.5(Single wind speed) 66 22 17.8
NA-3512H 1200×220×225 8.2 9(Single wind speed) 68 24 19.8
NA-3515H 1500×220×225 10.2 8(Single wind speed) 69 26 25
Premium Blower Heater Integrated (Remote Control Type) NA-3509HR 380V 4-wire
(R,S,T,N)		 900×220×225 6.2 10/9/8 65 21 2.0 17
NA-3510H 1000×220×225 7.2 9.5/9/7.5 66 22 17.8
NA-3512H 1200×220×225 8.2 9/8/7 68 24 19.8
NA-3515H 1500×220×225 10.2 8/7.5/7 69 26 25
Industrial Blower Heater Integrated (Panel Type) NA-1509H Motor 220V/380V Heater
380V(R,S,T,N)		 900×265×265 6.6 10.5(Single wind speed) 68 28 3.0 26
NA-1510H 1000×265×265 7.6 10(Single wind speed) 69 29 28
NA-1512H 1200×265×265 8.6 9(Single wind speed) 69 31 31
Industrial Blower Heater Integrated (Remote Control Type) NA-1509HR 380V 4-wire
(R,S,T,N)		 900×265×265 6.6 17/13/10.5 68 45 4.0 26
NA-1510HR 1000×265×265 7.6 16/12/10 69 47 28
NA-1512HR 1200×265×265 8.6 15/11/9.0 69 50 31
