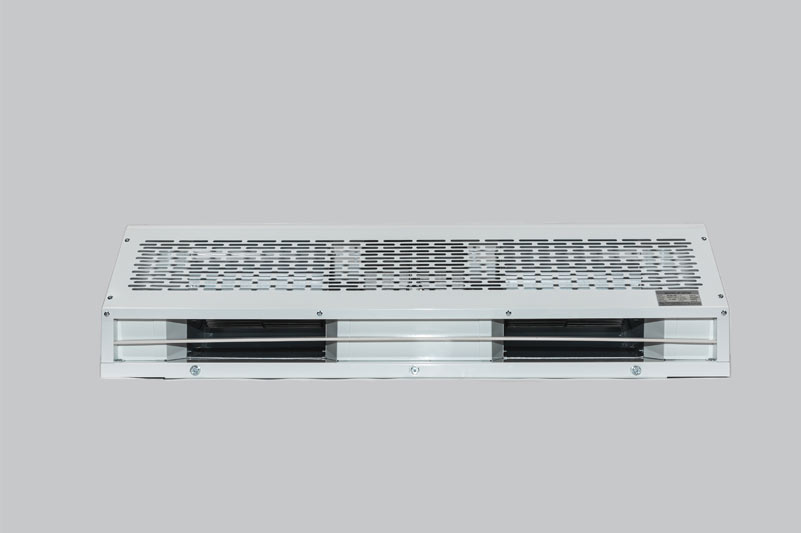

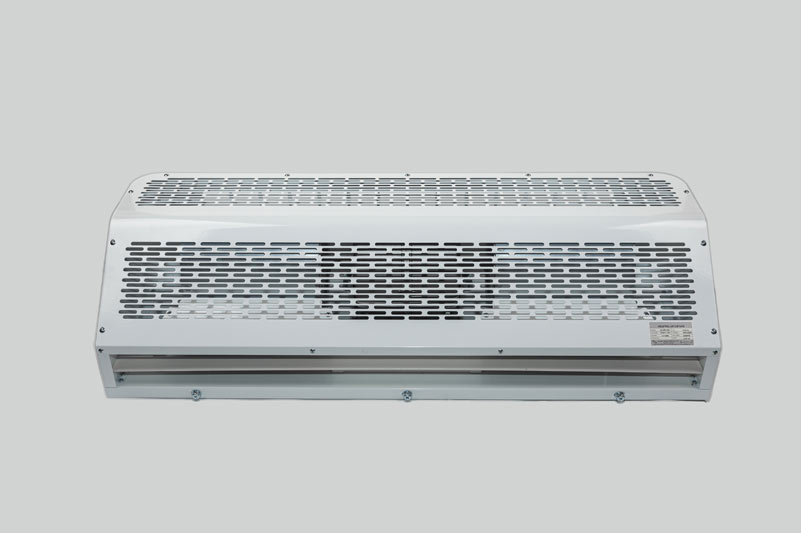

Special Industrial

With powerful air volume, this product is suitable for medium/large entrances requiring strong blocking effects, such as landfills, sewage treatment plants, and large logistics centers.

Product Features

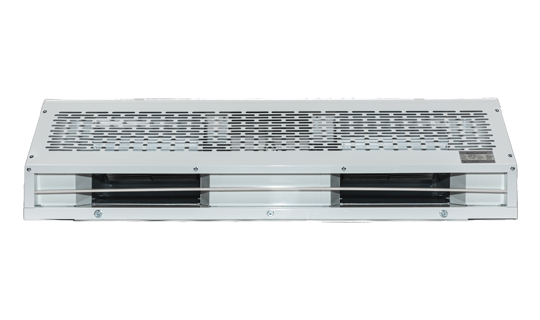

  • Special Industrial Air Curtain
    The unique industrial type, the first in Korea to apply a BLDC motor, can produce high output with low power consumption and offers various functions as options using software and hardware. It reduces power consumption by 60~70% compared to other companies’ special industrial types, and increases wind speed and energy efficiency by applying sirocco fans instead of cross fans.

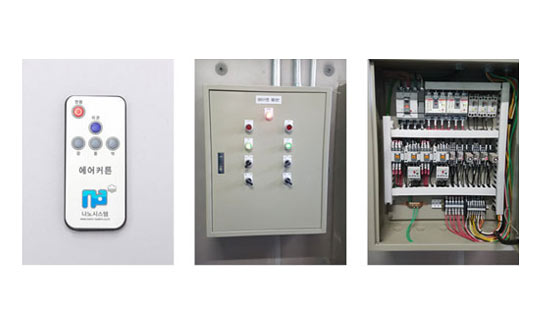

  • Remote Control Industrial Air Curtain
    Other companies’ products always require a panel, incurring additional costs for panel production and secondary electrical work, but NANO SYSTEM’s remote-controlled industrial air curtains can be controlled by remote control alone, where control panels are not essential, and can also provide custom panels when needed.
NANO SYSTEM

Experience Nano System's unique airflow in shared spaces, designed for everyone.

Product Advantages
  • Powerful Air Volume
    Implements powerful air volume suitable for medium to large spaces.
  • Wind Without Dispersion
    Powerfully blocks with the twist fan type without wind dispersion.
  • Outstanding Corrosion Resistance
    Designed with aluminum fans that are strong against corrosion inside and out, suitable for high-humidity environments.
  • Simple Remote-Control System
    Remote control is possible without secondary electrical work required for control panel installation.
Product Specifications
swipeDrag left and right possible

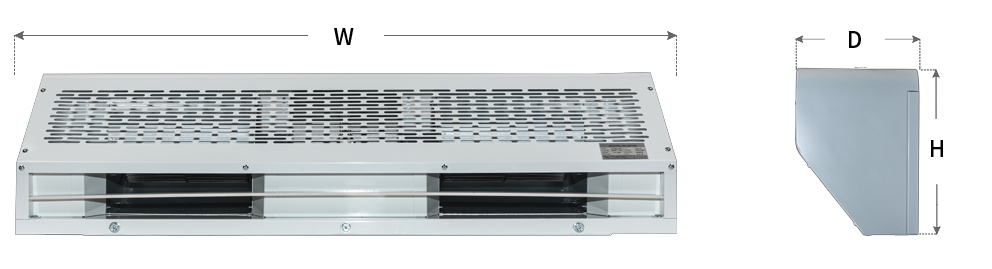

Product Type Model Power Dimensions(W*H*D) Power Consumption (W) Wind Speed-High Wind Speed (m/s) High/Medium/Low Noise (dB) Wind Speed High Air Volume (CMM) Wind Speed-High Effective Blocking Height (m)
Special Industrial (Panel Type) NA-2010L 220V 3-Phase or 380V 3-Phase 1000*340*250 2.5 40~43 83 83 6~8
NA-2012L 1000*340*250 2.5 40~43 85 100
