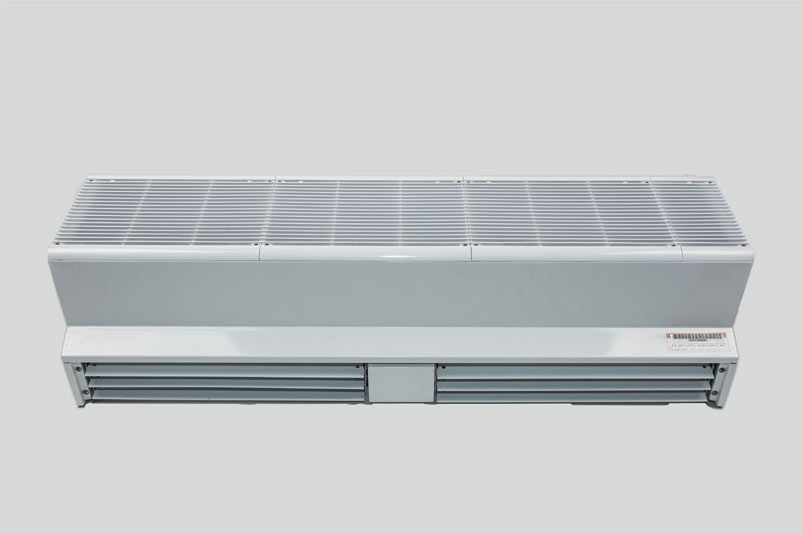

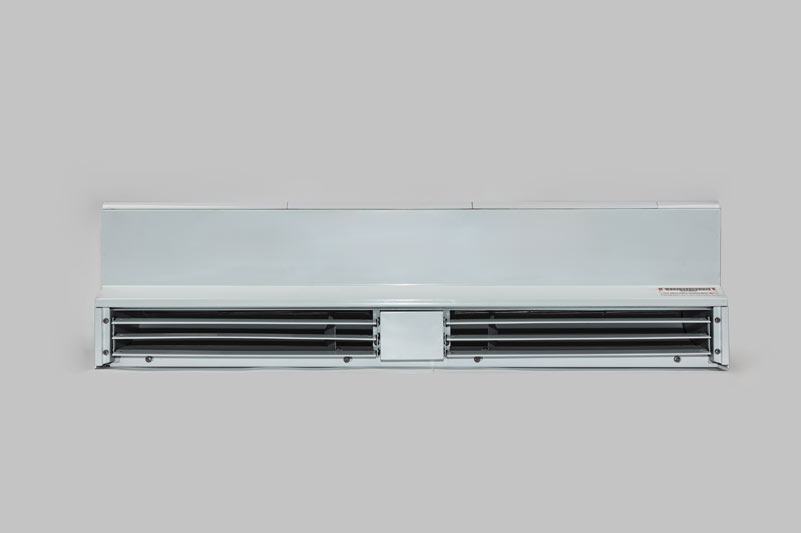

NA-15 Series B

With powerful air volume, this product is suitable for medium/large entrances requiring strong blocking effects, such as landfills, sewage treatment plants, and large logistics centers.

Product Features

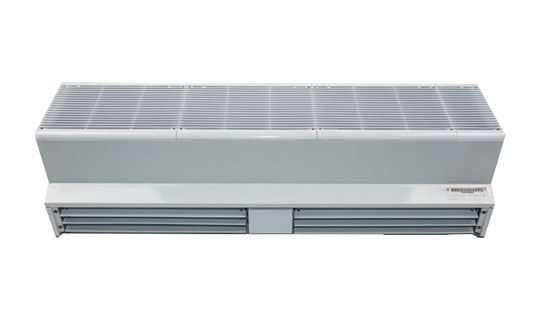

  • Regular Industrial (Panel Type) NA-15 Series B
    The general industrial panel type offers substantial airflow velocity and volume, making it suitable for use in large stores, HACCP-compliant food factories, large distribution centers, factory entrances, and frozen logistics warehouses. It operates with panel control at a single high-speed setting and provides adequate barrier coverage of 4-5 meters or more.

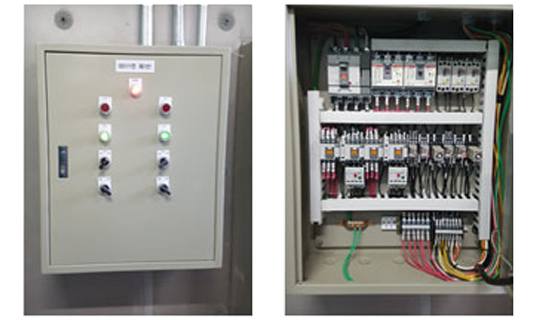

  • Industrial air curtains with panel-type control systems
    Operating on a single-phase 220V power supply, these industrial-type systems are designed for multiple air curtain installations. Control panels are manufactured with circuit configuration, automatic/manual functions, and central control capabilities for convenient operation methods and door integration.
NANO SYSTEM

Experience Nano System's unique airflow in shared spaces, designed for everyone.

Product Advantages
  • Powerful Air Volume
    Implements powerful air volume suitable for medium to large spaces.
  • Wind Without Dispersion
    Powerfully blocks with the twist fan type without wind dispersion.
  • Outstanding Corrosion Resistance
    Designed with aluminum fans that are strong against corrosion inside and out, suitable for high-humidity environments.
  • Simple Re mote-Control System
    Remote control is possible without secondary electrical work required for control panel installation.
Product Specifications
swipeDrag left and right possible

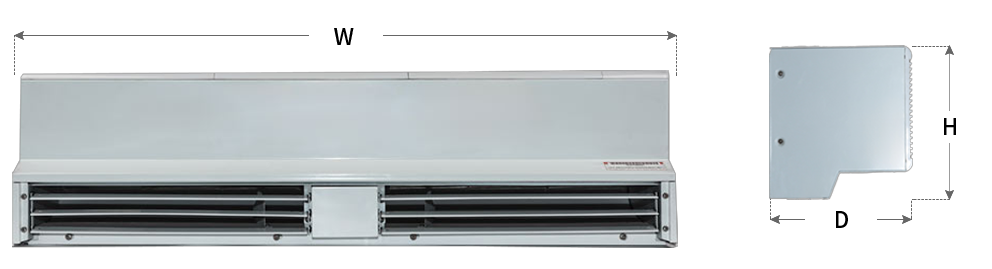

Product Type Model Power Dimensions(W*H*D) Power Consumption (W) Wind Speed-High Wind Speed (m/s) High/Medium/Low Noise (dB) Wind Speed High Air Volume (CMM) Wind Speed-High Effective Blocking Height (m)
Regular Industrial (Panel Type) NA-1509B 220V Single Phase 900*265*265 600 19 72 55 4~5
NA-1510B 1000*265*265 620 18 74 58
NA-1512B 1200*265*265 650 17 76 62
