NA-15 Series R

With powerful air volume, this product is suitable for medium/large entrances requiring strong blocking effects, such as landfills, sewage treatment plants, and large logistics centers.

Product Features
  • Regular Industrial (Remote Control Type) NA-15 series R
    The general industrial remote control type operates on a single-phase 220V outlet power, featuring substantial airflow velocity and volume, making it suitable for use in large stores, HACCP-compliant food factories, large distribution centers, factory entrances, and frozen logistics warehouses. This PCB-integrated model enables remote control operation and allows for sensor integration. It offers high, medium, and low speed adjustment with adequate barrier coverage of 3-5 meters or more.
  • Remote Control Industrial Air Curtain
    Other companies’ products always require a panel, incurring additional costs for panel production and secondary electrical work, but NANO SYSTEM’s remote-controlled industrial air curtains can be controlled by remote control alone, where control panels are not essential, and can also provide custom panels when needed.
NANO SYSTEM

Experience Nano System's unique airflow in shared spaces, designed for everyone.

Product Advantages
  • Powerful Air Volume
    Implements powerful air volume suitable for medium to large spaces.
  • Wind Without Dispersion
    Powerfully blocks with the twist fan type without wind dispersion.
  • Outstanding Corrosion Resistance
    Designed with aluminum fans that are strong against corrosion inside and out, suitable for high-humidity environments.
  • Simple Remote-Control System
    Remote control is possible without secondary electrical work required for control panel installation.
Product Specifications
swipeDrag left and right possible

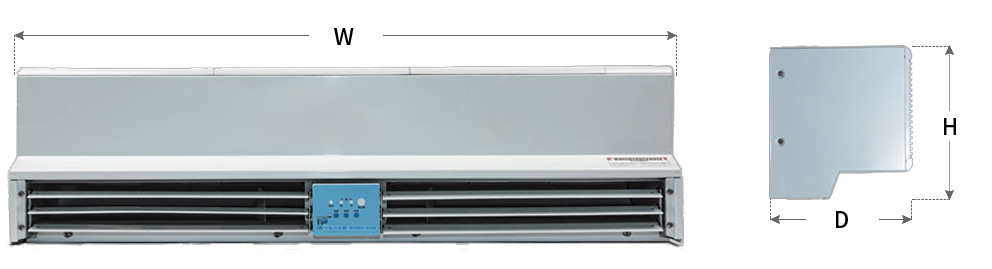

Product Type Model Power Dimensions(W*H*D) Power Consumption (W) Wind Speed-High Wind Speed (m/s) High/Medium/Low Noise (dB) Wind Speed High Air Volume (CMM) Wind Speed-High Effective Blocking Height (m)
Regular Industrial (Remote Control Type) NA-1509R 220V Single Phase 900*265*265 600 11-19 72 55 4~5
NA-1510R 1000*265*265 620 10.5-18 74 58
NA-1512R 1200*265*265 650 10-17 76 62
